21.5 Inch IP65 Outdoor Waterproof High Brightness Capacitive Touch Screen Monitor For Banking
High Brightness Touch Monitor Main Features
1. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
2. IP65 grade water-proof,dust-proof for front panel.
3. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
4. Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
5. Compatible with various industrial systems/application.
6. Support Resistive touch, SAW touch , IR touch, Capacitive touch.
7. CCC, UL, FCC, CE, CB, RoHS certificate.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) |
| Series | OT |
| Display Type | 16:9 Ratio 21.5" TFT-LCD |
| Active Area | 477.6*269.6(mm) |
| Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1500cd/m2 |
| With Touch Monitor | 1245cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 40～90KHz / 50～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Touch screen Type | 21.5”Projected Capacitive Touchscreen, |
| Touch System Interface | USB(or Serial port,one point) |
| Support System | 10 points in win7 |
| Regular Warranty | 1 year |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

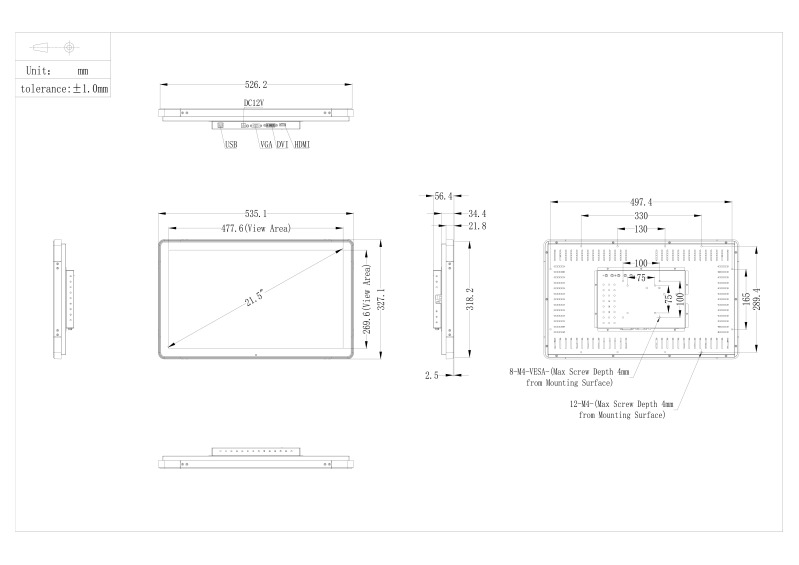

High Brightness Touch Monitor Mechanical Dimensions
Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
3. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ?
Our minimum order quantity is 1pc only.
3. What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
