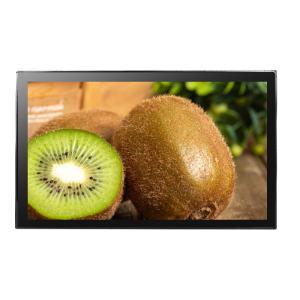

18.5 Inch PCAP Touch Monitor 1920x1080 Resolution For Kiosks
PCAP Touch Monitor Description
This PCAP touch monitor comes with features as following: 1920x1080 high resolution, 1000:1 contrast ratio, wide viewing angle and 16:9 ratio. Also, It has vandal-proof, anti-glare and IP65 front side water-proof function. VGA and HDMI interfaces are provided for use, and the USB port for touch. Multiple mounting methods are for your option, including VESA mount, horizontal and vertical brackets mount. Per your request, other sizes can be offered or customized.
PCAP Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0185U-CA4P (P/N:KOT-185P-014) |
| Series | OT |
| Display Type | 16:9 Ratio 18.5" TFT-LCD |
| Active Area | 409.8*230.4(mm) |
| Monitor Dimensions (W*H*D) | 449.4*270*47.9(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 500cd/m2 |
| With Touch Monitor | 400cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/HDMI |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 3.64Kg(1pcs)/8.93Kg(2pcs in one package) |
| Package dimensions | 525*190*385(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤25W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen |
| Touch Type | 18.5" capacitive touch screens (anti-glare,antifungal) |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥80% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 410.8*231.4(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

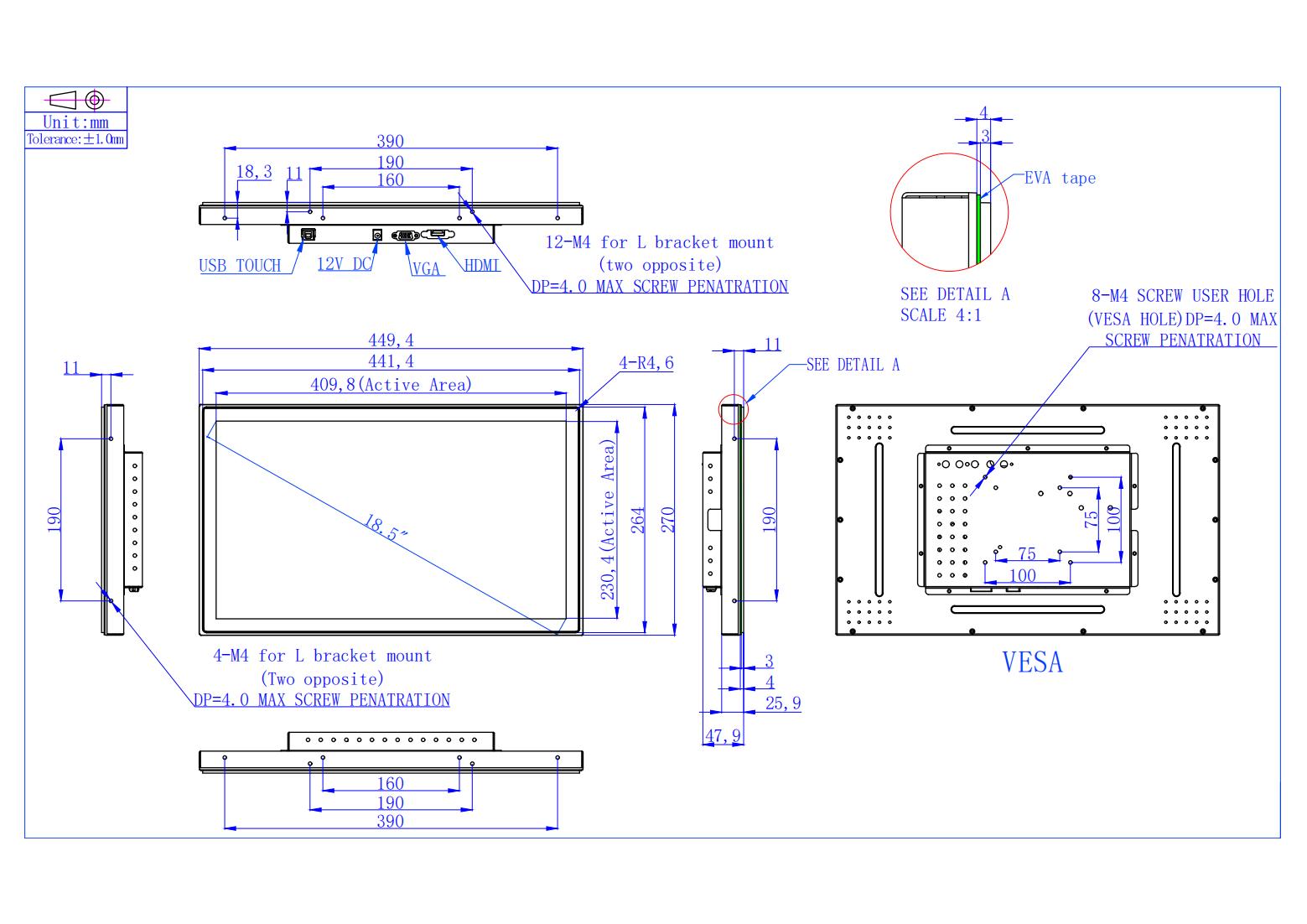

PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
