19 Inch PCAP Touch Monitor Anti-Vandal For Smart Lockers
PCAP Touch Monitor Description
This PCAP touch monitor has features as below: 1440x900 high resolution, 1000:1 contrast ratio, wide viewing angle and 16:10 ratio display. It also comes with anti-vandal and water-proof function. VGA and DVI interfaces are provided for use, USB port for touch. It supports various operation system: XP, WIN7, WIN8, WIN10, Linux, Android. Per customer’s individual requirements, customized services are available.
PCAP Touch Monitor Specifications
| Model No. | KOT-0190U-CA2P169 |
| Series | OT, Wide-screen , LED backlight |
| Display Type | 16:10 Ratio 19" Active matrix TFT-LCD |
| Display Active Area | 408.5×255. 5(mm) |
| Touch Monitor Dimensions | Width: 452mm Height: 299mm Depth: 51mm |
| Suggested Resolution | 1440×900 @ 60Hz |
| Support Colors | 16.7M |
| Brightness(Typ.) | Pure LCD Panel (Brightness from 300~1000nits can be customized ) | 250cd/m2 |
| With Projected Capacitive Touchscreen | 212cd/m2 |
| Response Time(Typ.) | 5ms |
| Viewing Angle (Typ.at CR>10) | Horizontal(left/right): 85°/85° |
| Vertical(up/down): 80°/80° |
| Contrast Ratio(Typ.) | 1000:1 |
| Video Input | VGA and DVI |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operation RH | 20%～80% |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life(Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | 5.5Kg(1pcs) / 13.75Kg (2pcs in one package) |
| Package Dimension | 525×220×380(mm)(2pcs in one package) |
| Power Consumption | 20W |
| Standby Power Consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Touch Screen Type | 19" Projected Capacitive touch sceen, 10 points in win7 |
| Touch System Interface | USB / RS-232(optional) |
| Touch Response time | 10ms |
| Agency Approval | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 Year |
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

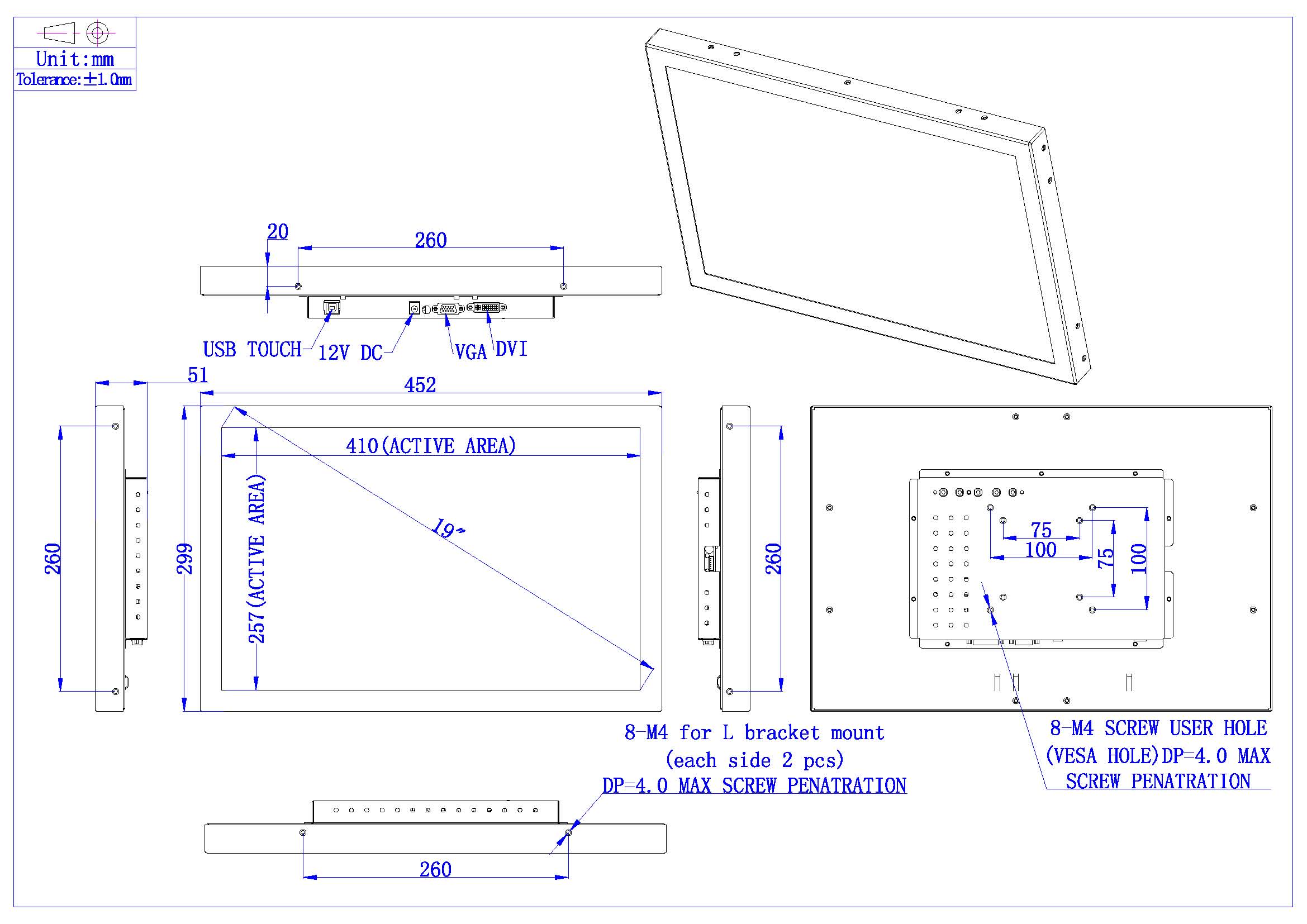

PCAP Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
