19'' IR Touch Monitor 1000:1 Contrast Ratio Open Frame Touch Display
Description of Infrared Touch Screen Monitor
This 19 inch IR touch monitor is with Infrared touch technology, high durability, high accuracy, which makes us have great interactive experience. This IR touch monitor is industrial grade, with IP65 front frame water-proof, anti-vandal and dust-proof functions. DVI&VGA interfaces and USB are provided for use. Moreover, it can support multiple mounting options, including VESA mount, horizontal and vertical brackets mount.
IR Touch Screen Technology Specifications
| Complete Machine |
| Model No. | KOT-190G-022(P/N:KOT-190P-029) |
| Series | Open frame monitor |
| Structure | metal frame, dustproof,open frame,black dustproof metal frame |
| Display Type | 19＂Ratio:16:10,Active matrix TFT-LCD,LED backing |
| Active Area | 16.1＂(408.24mm)×10.0＂(255.15mm) |
| Suggested Resolution | 1440×900 |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| Response Time (Typ.) | 5ms |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 50-60 Hz |
| Environment | Operating Temp. | 0~50°C |
| Operating RH | 20%~80% |
| Storage Temp. | -20~60°C |
| Storage RH | 10%~90% |
| MTBF | 30,000 Hour |
| Mounting Type | Standard:VESA 75mm and 100mm Optional:Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Glass Type | 19” anti-vandal(6mm) |

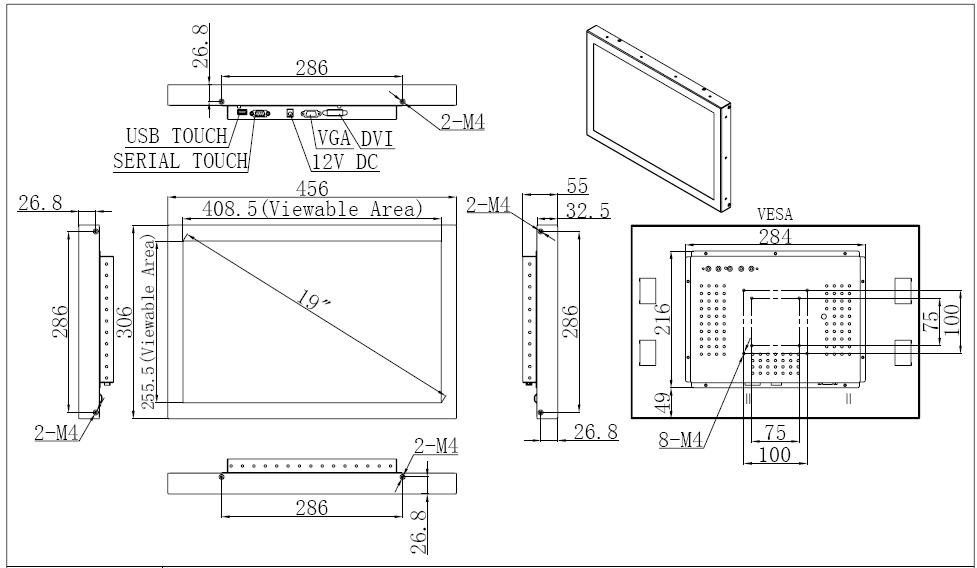

Infrared Touch Panel Mechanical Dimensions
Large Infrared Touch Monitor Applications
IR Touch Monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Advantages of Infrared Interactive Touchscreen
1. High durability: IR touch monitors are designed to withstand heavy usage and can handle millions of touch inputs. They are resistant to scratches, dust, and water, making them ideal for use in high-traffic areas.
2. Easy calibration: IR touch monitors can be easily calibrated to ensure accurate touch input detection. This makes them more user-friendly and reduces the need for maintenance.
3. Compatibility: IR touch monitors are compatible with a wide range of operating systems, including Windows, Mac, and Linux. This makes them versatile and suitable for a variety of applications, including gaming, education, and business.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the IR Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the IR Touch Monitor ?
3-5 work days for inventory orders, 7-15 business days for bulk production.
