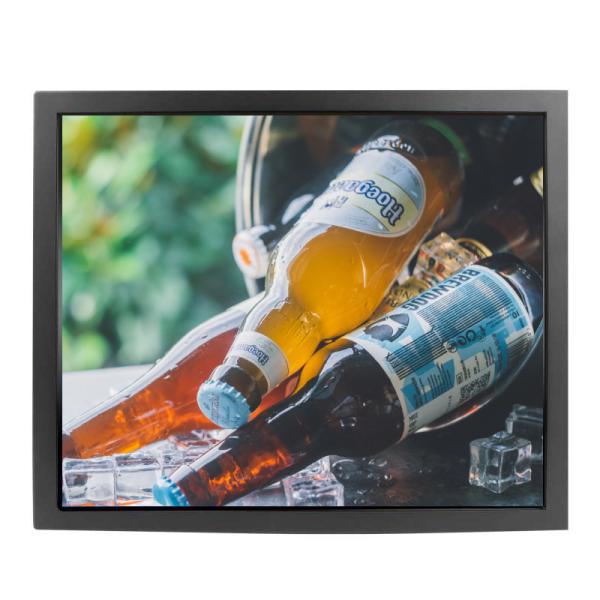

19 inch Infrared Touch Monitor IP65 Waterproof for Kiosks
Description of IR Touch Monitor
This 19 inch IR touch monitor has main features as following: 1280*1024 high resolution, 1000:1 high contrast ratio, IP65 waterproof, dust-proof and vandal-proof along with wide viewing angle. This industrial grade IR touch monitor comes with high-quality image. There are multiple mounting options including VESA mount, horizontal and vertical brackets mount. Moreover, other sizes are can be offered (7’’- 43’’).
Infrared Touch Monitor Specifications
| Model No. | KOT-0190U-IR3W |
| Series | OT |
| Display Type | 19＂Active Matrix TFT-LCD |
| Display Active Area | 14.8＂(377mm)×11.9＂(301mm) |
| Suggested Resolution | 1280×1024@60Hz |
| Support Colors | 16.7M |
| Response Time(Typ.) | 16ms |
| Contrast Ratio(Typ.) | 1000:1 |
| Video Input | Analog RGB |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp: | 0～50°C |
| Storage Temp: | -20～60°C |
| Operation RH: | 20%～80% |
| Storage RH: | 10%～90% |
| MTBF | 50,000 Hours |
| LED Back light Life(Typ.) | 50,000 Hours |
| Weight(N.W/G.W) | N.W :5.85Kg (Single) |
| Power Consumption | 15W Max. |
| Standby power consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied) |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Touch screen Type | Keetouch 19" IR Touch Mointor |
| Support System | WinXP,Win7,Win8,Linux |
| Touch System Interface | Having USB interface |
| Touch Response time | 16ms |
| Regular Warranty | 1 year |
Infrared Touch Monitor Mechanical Dimensions
Applications
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of IR Touch Monitor
1. High accuracy: IR touch monitors offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.
2. Multi-touch support: IR touch monitors can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.
3. No pressure required: IR touch monitors do not require any pressure to detect touch inputs. This makes them easier to use for people with disabilities or those who have difficulty applying pressure.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
