27 Inch Projected Capacitive Touch Screen Monitor With LED Flexible Strip For Gaming
Description of PCAP Touch Monitor
This Projected Capacitive Touch Screen Monitor comes with main features as below: 1920*1080 high resolution, 3000:1 high contrast ratio, IP65 front frame waterproof, vandal proof and dust-proof with full viewing angle. The Projected Capacitive Touch Screen Monitor are designed with LED flexible strip, ideal choice for gaming. Also, with professional R&D department, OEM and ODM services are offered, and other sizes (7’’- 43’’) are optional.
Specification of PCAP Touch Monitor
| Complete Machine |
| Model No. | KOT-0270U-CA4P (P/N:KOT-270P-003) |
| Series | OT |
| Display Type | 16:9 Ratio 27" TFT-LCD |
| Active Area | 597.6*336.15(mm) |
| Monitor Dimensions (W*H*D) | 653.9*391.9*46.5(mm) |
| Suggested Resolution | 1920*1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 255cd/m2 |
| Response Time (Typ.) | 12ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 3000:1 |
| Video Input | VGA/DVI/HDMI |
| Frequency (H/V) | 40～90KHz / 50～75Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Weight(N.W/G.W) | 9.8Kg(1pcs)/21.3Kg(2pcs in one package) |
| Package dimensions | 770*513*198(mm)(2pcs in one package) |
| Power Consumption | Standby Power: 2W / Operating Power: ≤45W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Touch screen Type | 27”Projected Capacitive Touchscreen, |
| Touch System Interface | USB(or Serial port,one point) |
| Support System | 10 points in win7 |
| Regular Warranty | 1 year |

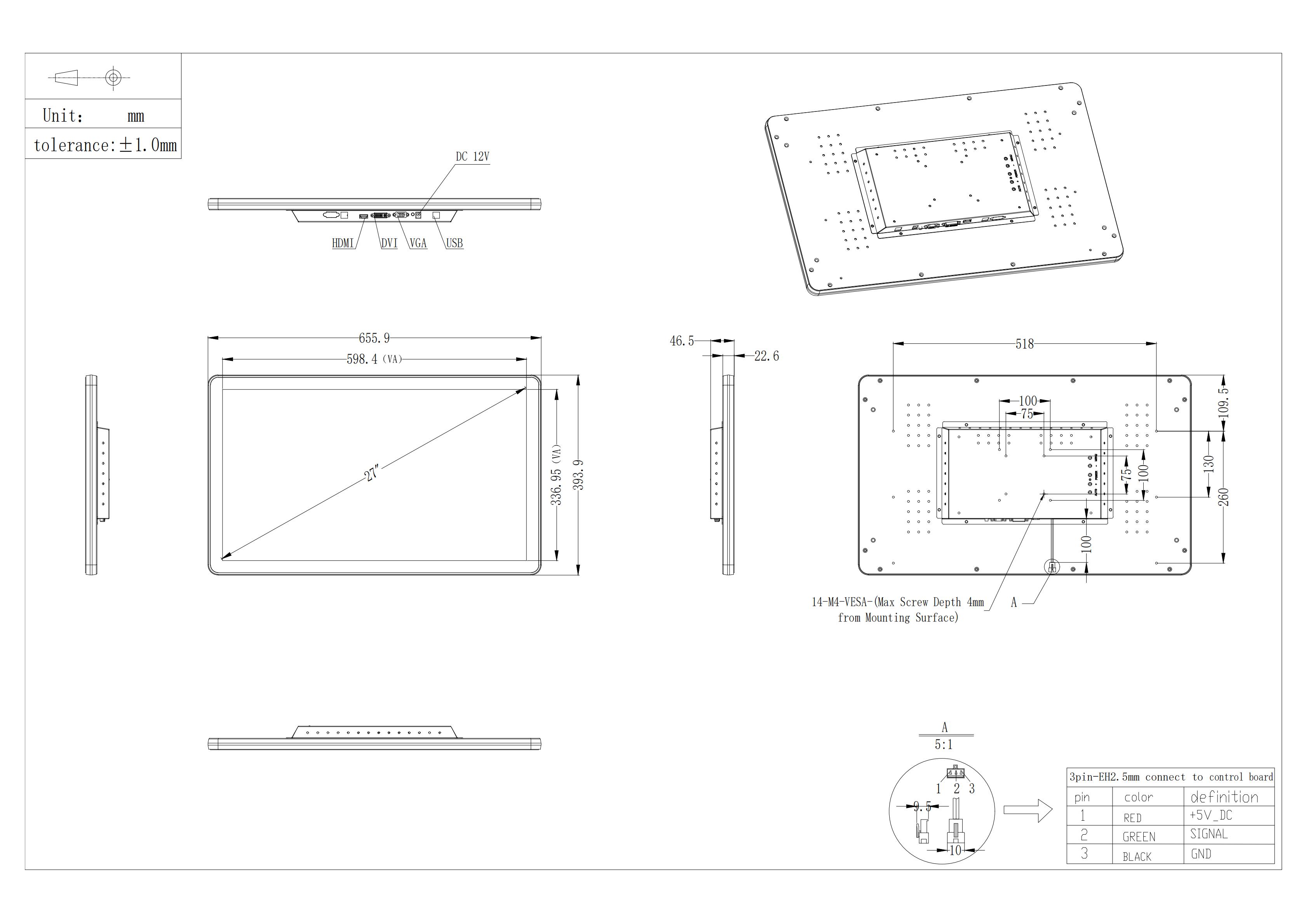

Mechanical Dimensions
Application:
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of PCAP Touch Monitor
1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 17 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
